Vendor Part Kits - Store Employee

Vendor Part Kits - Store Employee

Vendor Part Kits Overview

Vendor Part Kits let you link multiple UPCs to a single vendor part. They are helpful when you have the same product with different UPCs. For example, candy products can have different UPCs for various candy flavors.
Info
What is a vendor part?
A vendor part is an alphanumeric number provided by the vendor to the retailer. The vendor provides the vendor part based on how they identify the product in their system. For a retailer, the vendor part indicates the vendor associated with a specific product. The vendor part number is necessary to create or schedule an order for the product.

This article includes information about:
  1. How to view the vendor part kit details

1. Reaching "Vendor Part Kits"

  1. Step 1: Log into Control Center
  2. Step 2: Choose Location
  3. Step 3: Choose Pricebook
  4. Step 4: Choose Vendor Parts
  5. Step 5: Choose Vendor Part Kits
Figure 1.1 below will help you better understand the navigation.

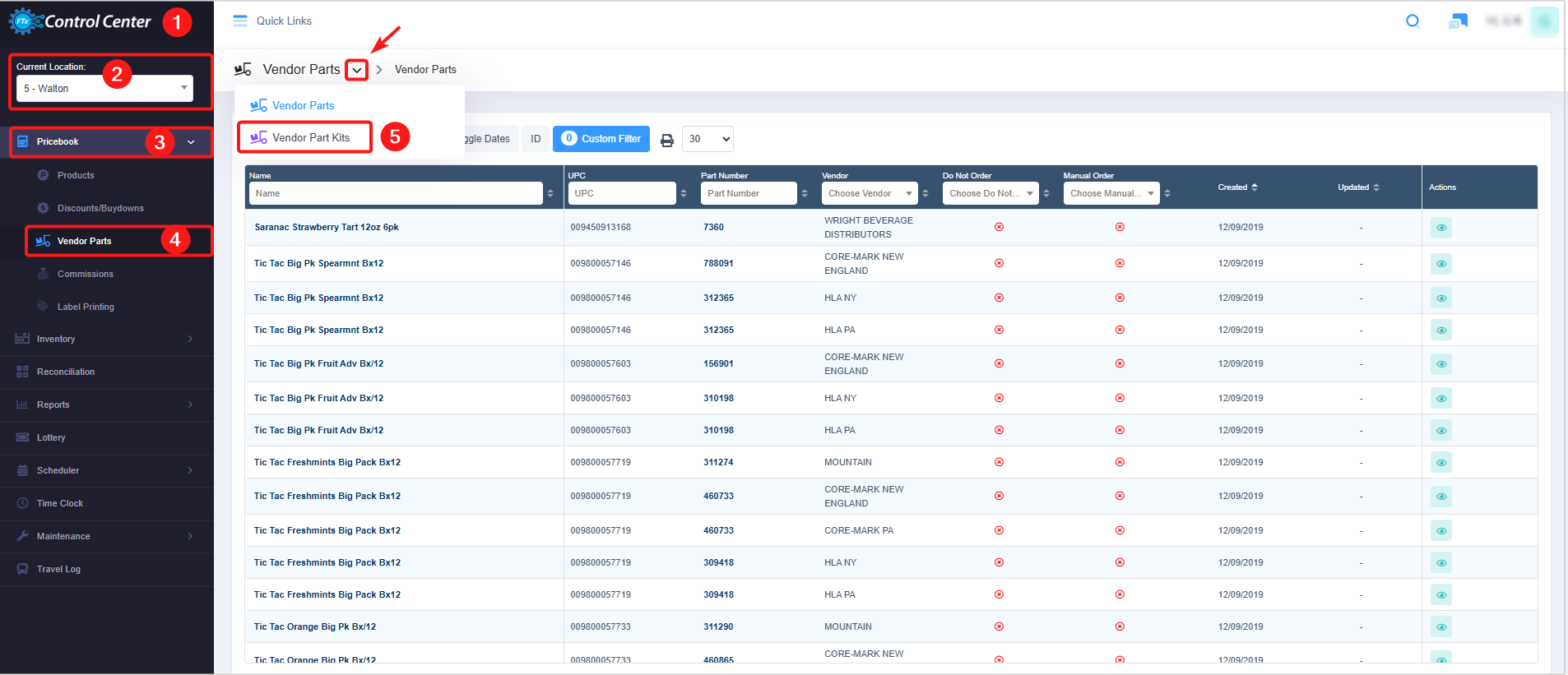

Figure 1.1

2. Understanding the "Vendor Part Kits" Layout

Please refer to Figure 2.1 and the descriptions of the buttons and fields below to understand the layout of "Vendor Part Kits."

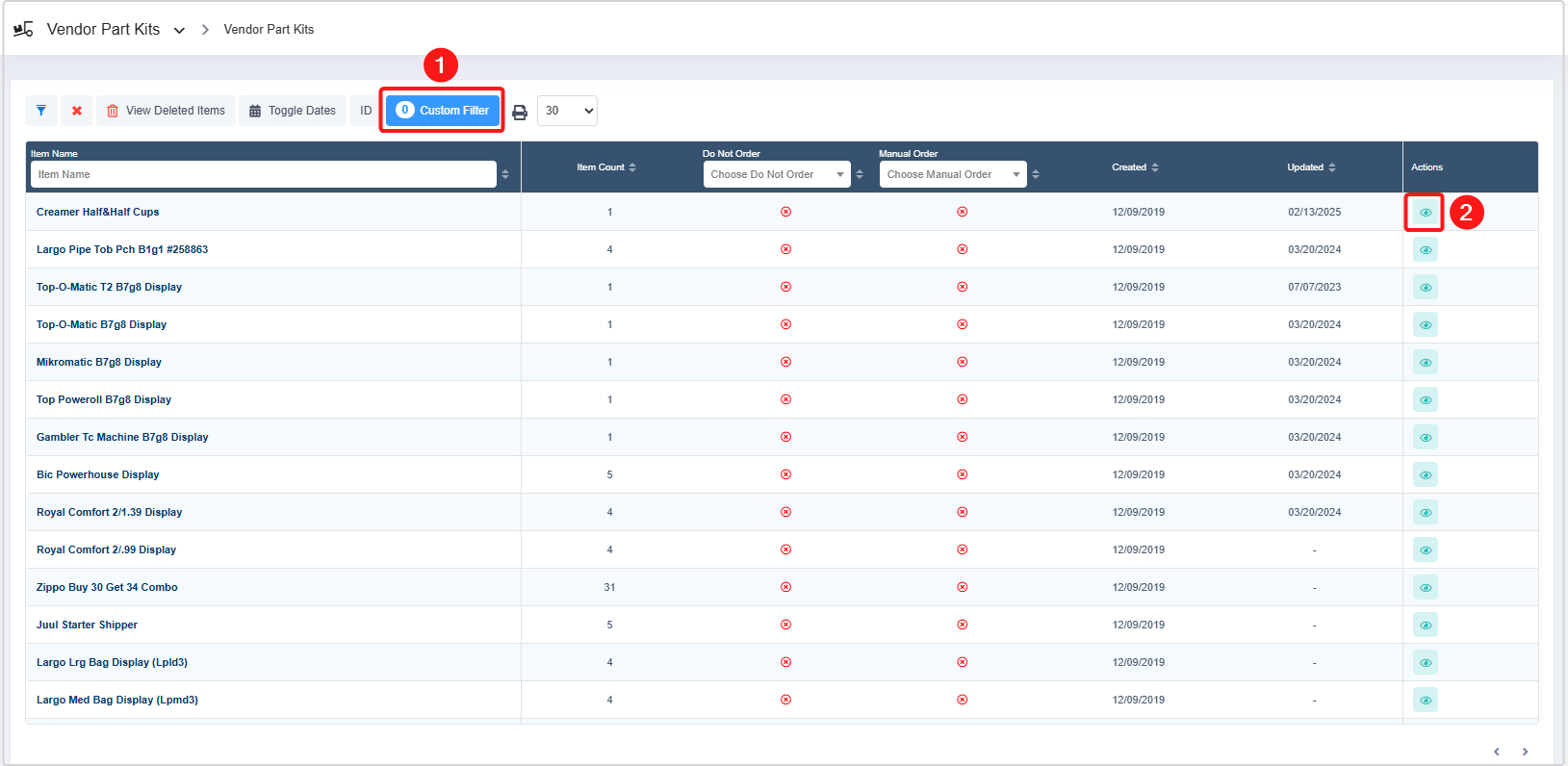

 Figure 2.1
  1. 1: Custom Filters: This button allows you to create a custom filter to view the vendor part kit list. Point 2.1 Applying Custom Filters explains more details.
  2. 2: View Vendor Part Kit Details: The View button lets you view the vendor part kit’s details.

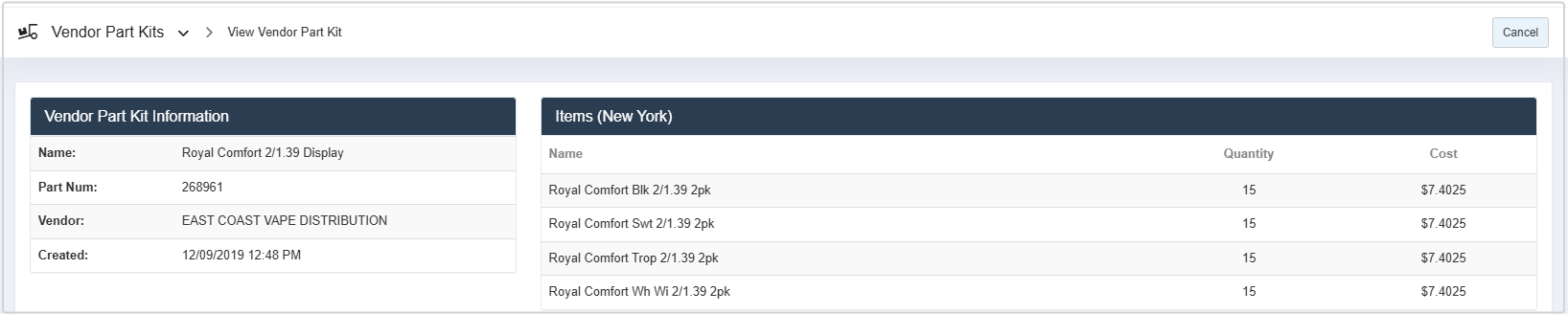

Figure 2.2

2.1 Applying Custom Filters

Using a custom filter, you can be more specific about the vendor part list.
  1. You can create custom filters to filter the vendor part list based on five parameters: Product, Department, Category, Manufacturer, and Tag.
  2. When you select a parameter, i.e., product, and apply a custom filter, the system will show the list of all vendor part kits for the selected product(s). You can choose a combination of multiple parameters as per your requirements.
  3. You can save the custom filters and give them friendly names if you need to view the selected parameters frequently.
Please follow the steps below to create a custom filter:
  1. Click "Custom Filters," highlighted in Figure 2.1.
  2. The Manage Filters screen will open.

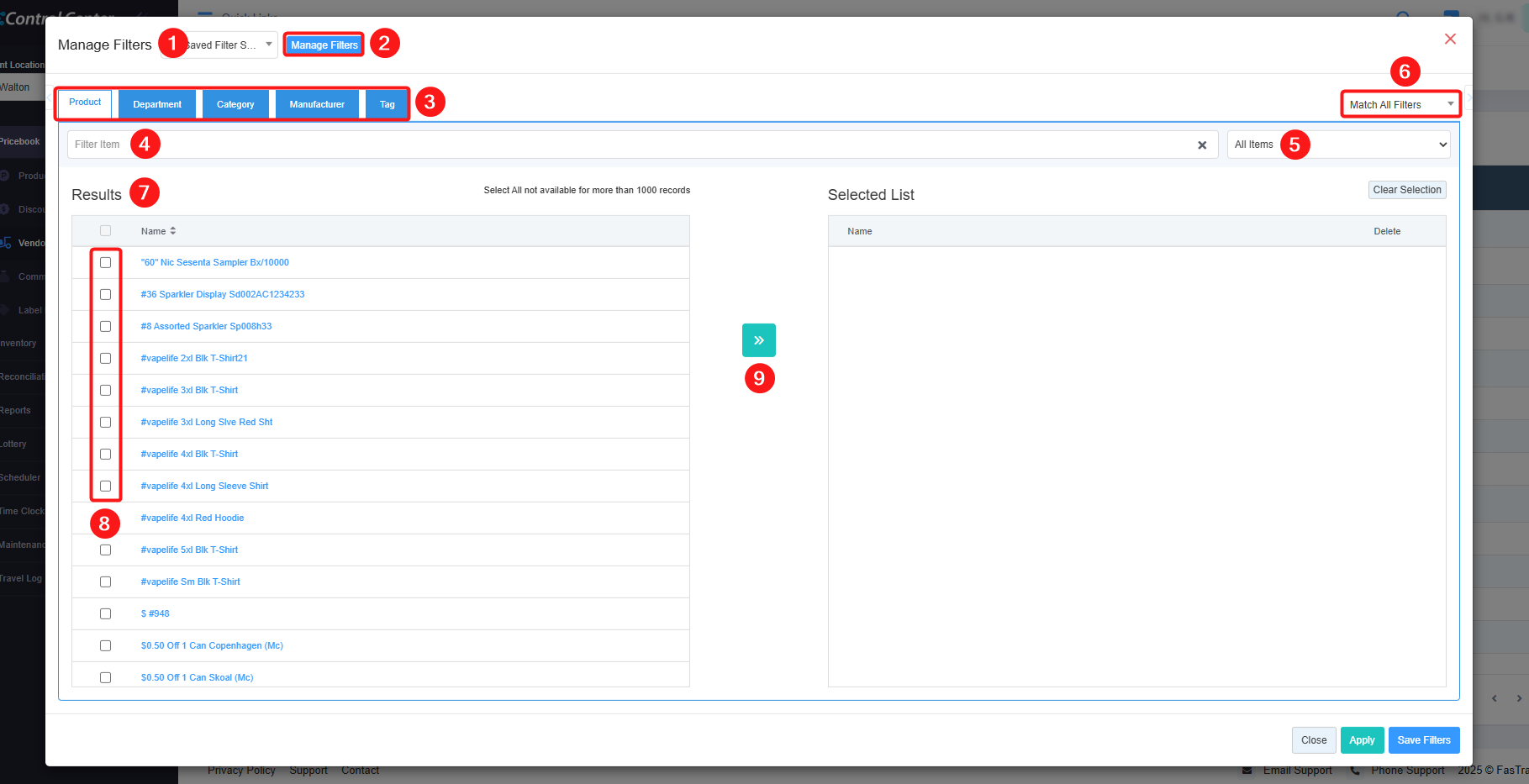

Figure 2.1.1
  1. 1: Saved Filters Drop-down: Select the saved custom filters from the Manage Filters drop-down (if any) and click "Apply" to apply the saved custom filter. The system will redirect you to the Vendor Part Kits home screen and display
  2. 2: Manage Filters: Click this button to open the Manage Saved Filters screen. 2.1.1 Save and Manage Custom Filters explains the details.
  3. 3: Parameters Tabs: You will see twelve tabs: UPC, Department, Category, Manufacturer, Tag, Department Tag, Campaign, Commission, Discount, Uplift, Buydown, and Vendor. Select the required tab, i.e., "UPC," to create or apply a custom filter specific to the selected UPCs.
  4. 4: Search: Use this Search box for a specific result.
  5. 5: All Items: Use the Item filter to filter the Manage Filter screen data based on four product parameters: All Items, Child Only, Parent Only, and Standalone Only. Choose the required parameter. This filter is available only for the UPC tab.
  6. 6: Match All Filters drop-down: The Match All Filters filter has two options, "Match All Filters" and "Match Any Filters." Select either option to determine whether the Manage Filter screen data matches all applied filters. This drop-down is particularly useful when you use multiple parameter tabs, such as when you choose a few products from the Product tab and a few departments from the Department tab.
  7. 7: Results: This section shows the relevant list for the selected tab. For example, if you have chosen the Products tab, it will show the list of products. You can use the "Search" bar for a specific product. You will see the data accordingly if you have applied the 4, 5, or 6 filters.
  8. 8: Selection Checkboxes: Select the required products by checking the corresponding checkboxes.
  9. 9: Arrow: Click the green "Arrow" button to move the selected records to the Selected Area.
  1.  The Manage Filters screen will look like the one shown in Figure 2.1.2.
Figure 2.1.2
  1. 1: Clear Selection: Click the "Clear Selection" button to remove the whole selection. To remove a single record from the list, click the "Remove (x)" icon next to the record.
  2. 2: Apply: Click the "Apply" button for the selected parameters. The system will navigate you to the Vendor Part Kits home screen and show you the list of vendor part kits based on your selection. For example:
    1. If you have selected five products, the screen will show you the list of only those five products.
    2. If you have selected a category, the screen will show vendor part kits belonging to that category only.
  3. 3: Save Filters: Click the "Save Filters" button to save the custom filter for future use. Section 3.1.1, Save and Manage Custom Filters explains the details.

2.1.1 Save & Manage Custom Filters

Please follow the steps below to save the configured custom filters for future use and manage the existing custom filters.
  1. Click the "Save Filters" button shown in Figure 2.1.2.
  2. The Name pop-up will appear, as shown in Figure 2.1.1.1.
Figure 2.1.1.1
  1. Enter the name of the custom filter and click "OK." The system will save the filter.
  2. The system will save the filter. You can use the saved custom filter whenever needed and delete it when no longer required. To do so, reopen the Manage Filters screen and follow the steps shown in Figure 2.1.1.2 according to your specific requirements.

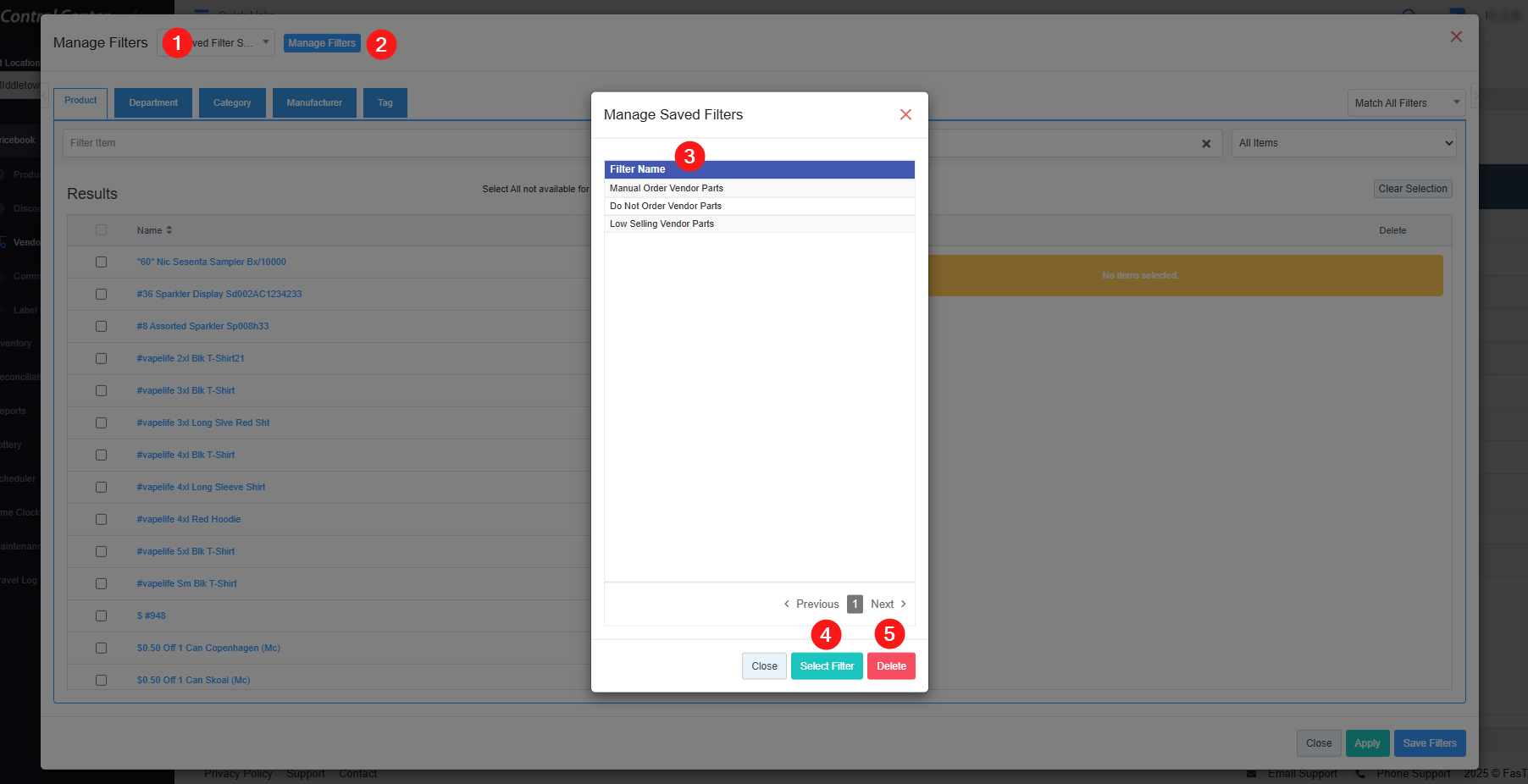

Figure 2.1.1.2
  1. 1: Saved Filters Drop-Down: The saved custom filters will appear in the drop-down selection. Select the required custom filter from the list and click "Apply."
  2. 2: Manage Filters: You can check and manage the filters by clicking the "Manage Filters" button. When you click it, a list of saved custom filters will appear in the "Manage Saved Filters" pop-up screen.
  3. 3. Filter Names: The Filter Names section lists all saved custom filters. Click on a filter name to select it.
  4. 4: Select Filter: Use the "Select Filter" button to select any filter from the list.
    1. Click on the filter's name, and then click on the "Select Filter" button. The system will close the "Manage Saved Filters" pop-up screen. Next, click the "Apply" button on the "Manage Filters" screen. The system will navigate you to the Vendor Part Kits home screen and show you the list of vendor part kits based on your selection.
  5. 5. Delete: Use the "Delete" button to remove the filter that is no longer required from the list.
  1. The system will show the list of vendor part kits based on your specific choice, as shown in Figure 2.1.1.3.

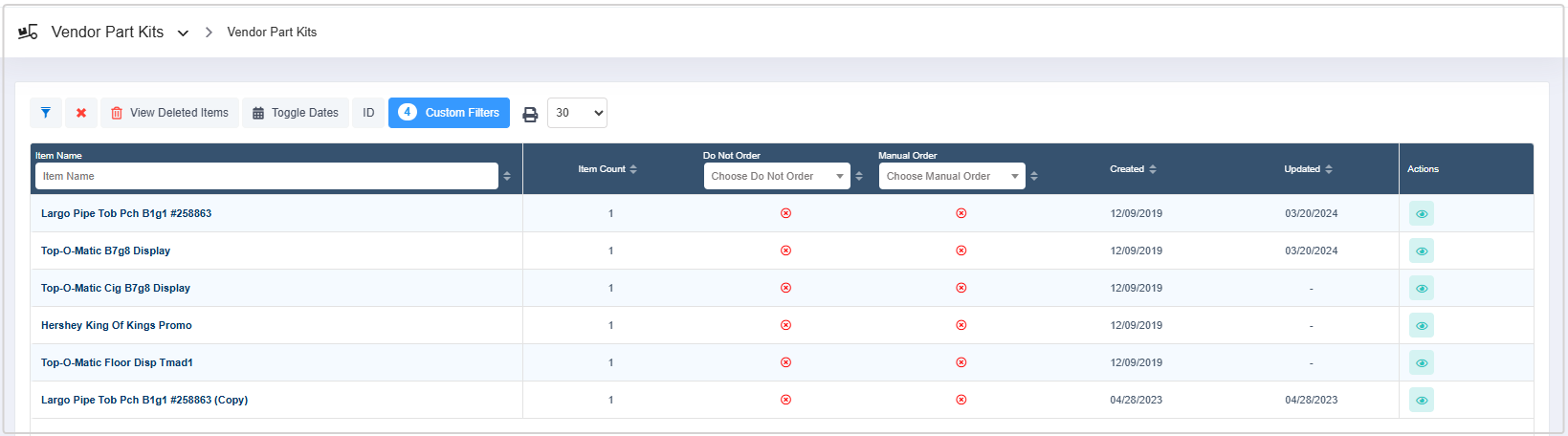

Figure 2.1.1.3
